Mean Green Bit

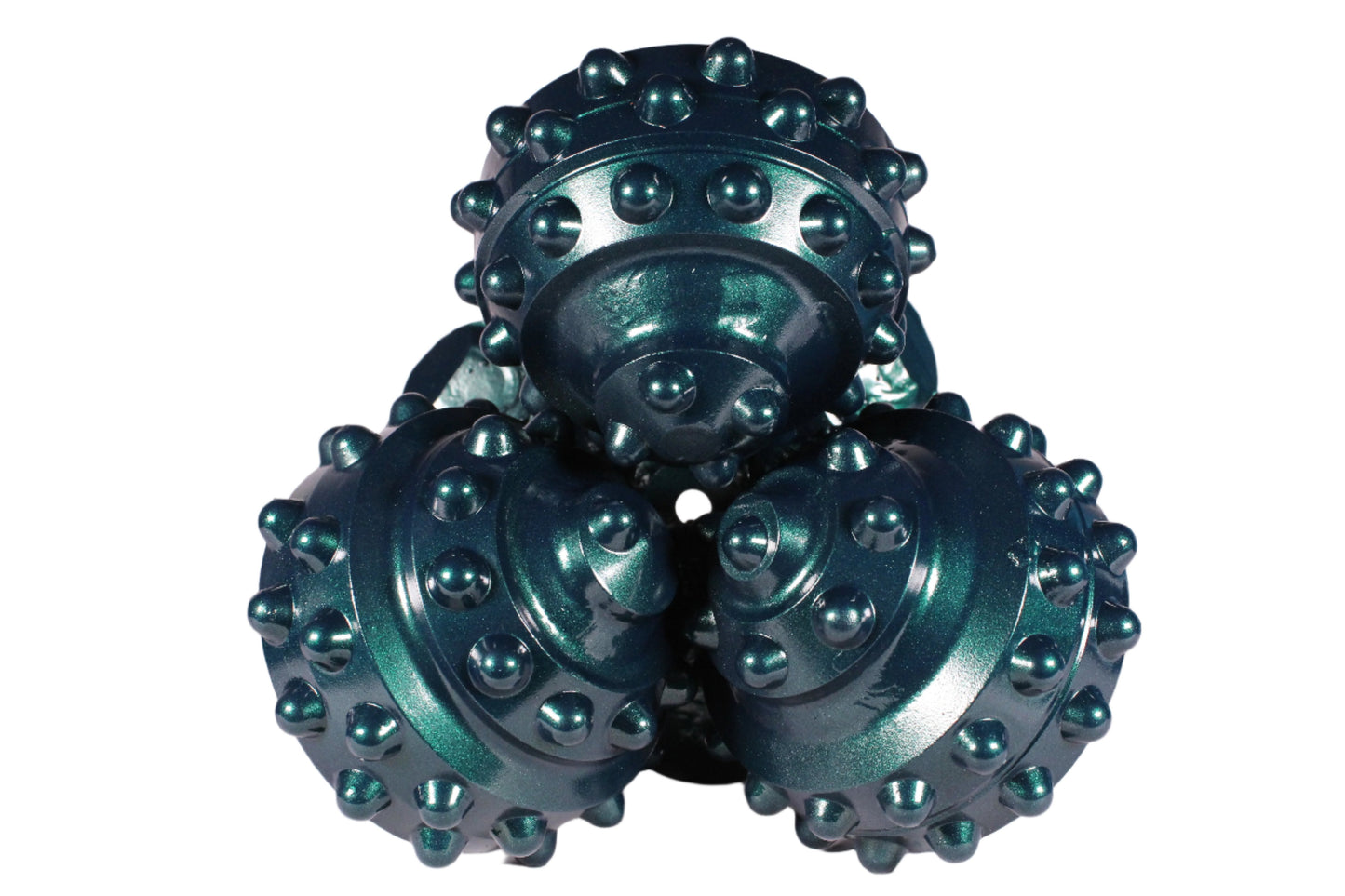

8 1/2" Mean Green Extreme Tri-Cone Bit

$6,625.00 USD
$6,625.00 USD
Sale Sold out
Shipping calculated at checkout.
Pin Size
Series (IADC)
View full details

The 8 1/2" Mean Green Extreme Tri-Cone includes both the Power Jet™ and Chunk Carbide Shank for optimized drilling capabilities. The Power Jet™ virtually eliminates frac-out and budgets drilling fluid, while the Chunky Carbide Shank protects the seals and prevents premature breaking of the bit. The Mean Green Extreme offers top of the line performance.

For sizes and series not listed, please contact us for availability.

Compatibility Chart. Find the bit for your drill:

Ditch Witch® RockMaster® Housings, required bit thread and size.

DRILL MODELS OEM PART NUMBER DESCRIPTION BIT CONNECTION BIT SIZES
2720AT, AT30 401-159 3.75" Rockmaster® 2° 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
2720AT, AT30 401-329 3.75" Rockmaster® 2° 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
2720AT, AT30 400-3162 4.5" Rockmaster® 2° 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
2720AT, AT30 400-3163 4.5" SwitchBack™ 2° 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
2720AT, AT30 350-1254 4.75" Rockmaster® 2° 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
AT40 400-2460 4.75" Rockmaster® 2° 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
AT40 400-2630 4.75" Rockmaster® 2.5° 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
4020AT, AT60 400-0919 5" Rockmaster® 1.5° 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
4020AT, AT60 400-1467 5" Rockmaster® 2° 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
AT100 400-1488 5" Rockmaster® 2° 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"

Vermeer® RH® Series Housings, required bit thread and size.

DRILL MODELS OEM PART NUMBERS DESCRIPTION BIT CONNECTION BIT SIZES
AT30 296529337 RH10 Rock Housing 2 7/8" (2.88 / 2.875) API Reg Pin 5 1/2" - 6"
AT40 296544146 RH15 Rock Housing 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
AT40 296544150 RH15 Rock Housing 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
D23X30DR 296490378 RH10 Rock Housing 2 7/8" (2.88 / 2.875) API Reg Pin 5" - 6"
D40X55DR 296490296 RH15 Rock Housing 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
D40X55DR 296479658 RH15 Rock Housing 3 1/2" (3.5) API Reg Pin 6 1/4" - 6 1/2"
